KSGER T12 Soldering Station V2

Posted: 08/11/2021 in Uncategorized

So back in March, I shared a post about some new equipment that the basement had acquired. One of which was a new soldering station and a custom pen holder and tip cleaning tray.

As of last week though, I’m no longer in my own basement and my whole workshop has been reduced to two 6′ plastic folding tables, which goes without saying…sucks. And though this is only a temporary set-up, the need to conserve space has made itself very apparent.

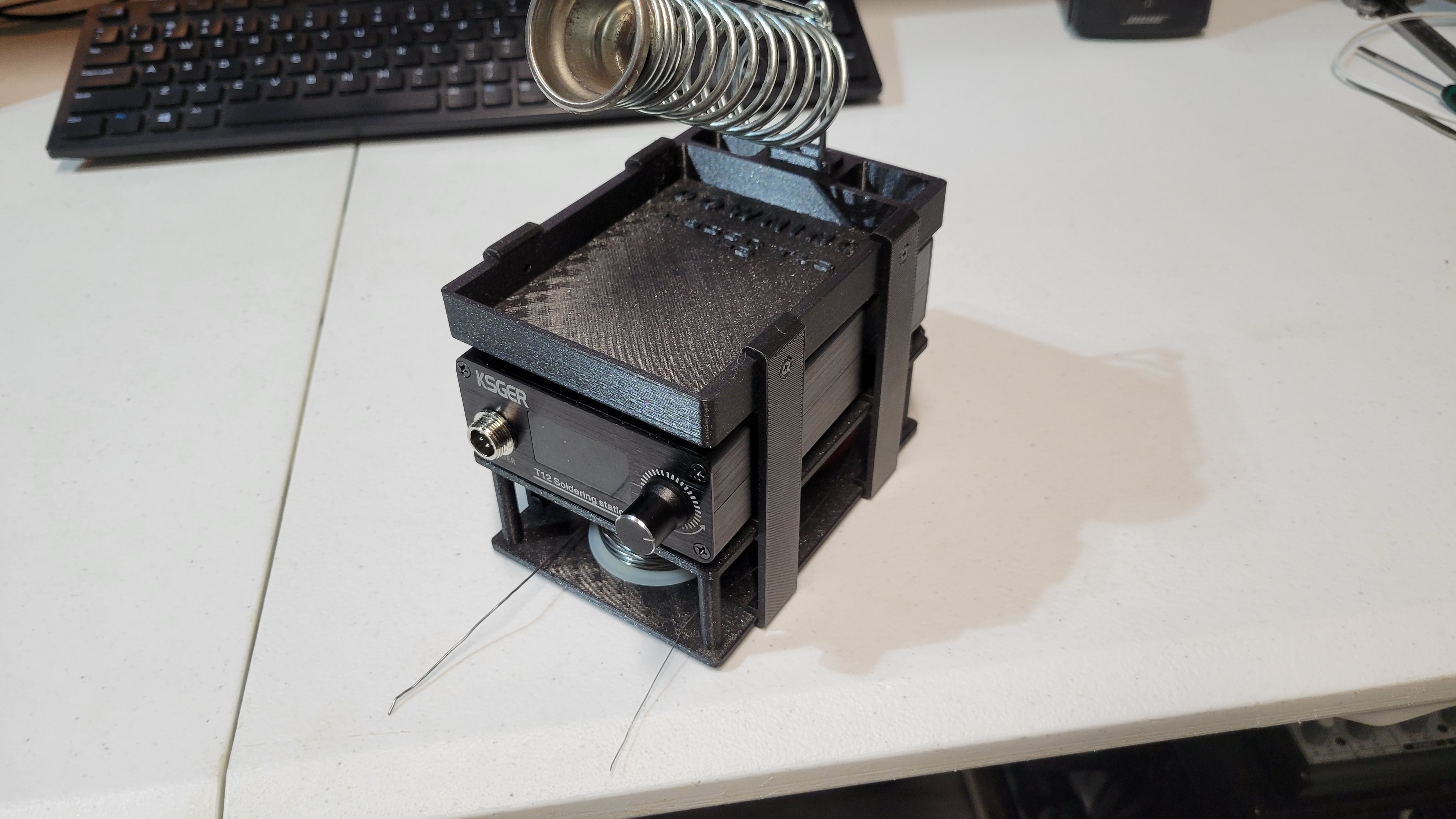

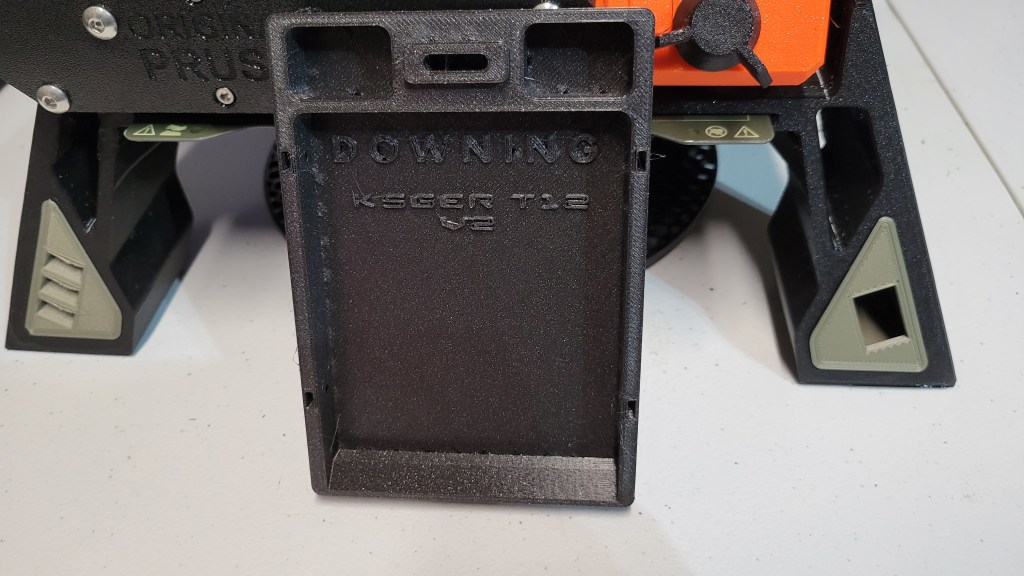

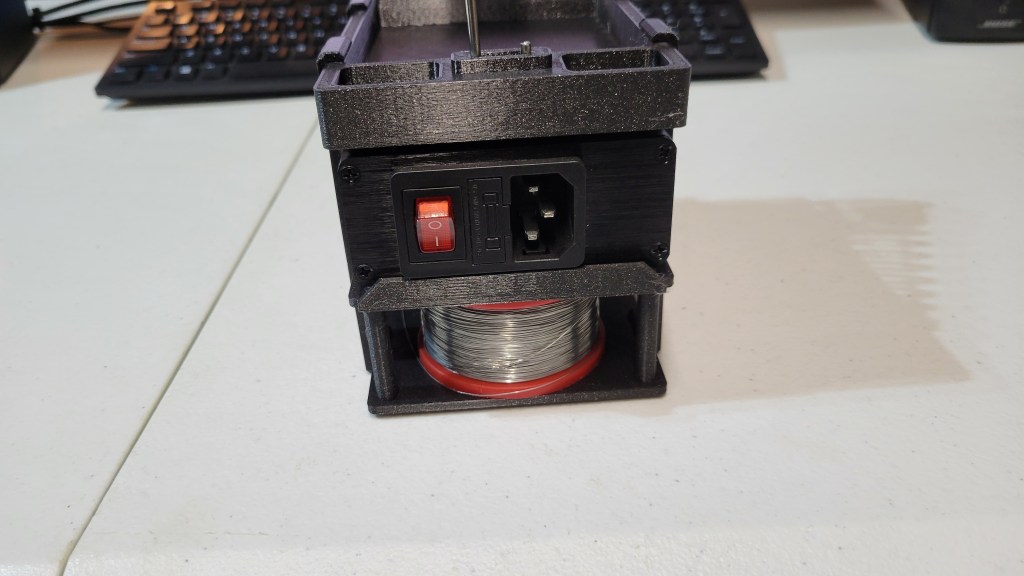

So today after a couple days of work, I finished off a revised Pen/Cleaning tray holder that added a duel solder spool holder at the bottom of the unit which was designed around keeping in roughly the same footprint of the soldering station itself.

All the STL files can be found at the link above for download if you feel so inclined but you will also need a bit more hardware than last time.

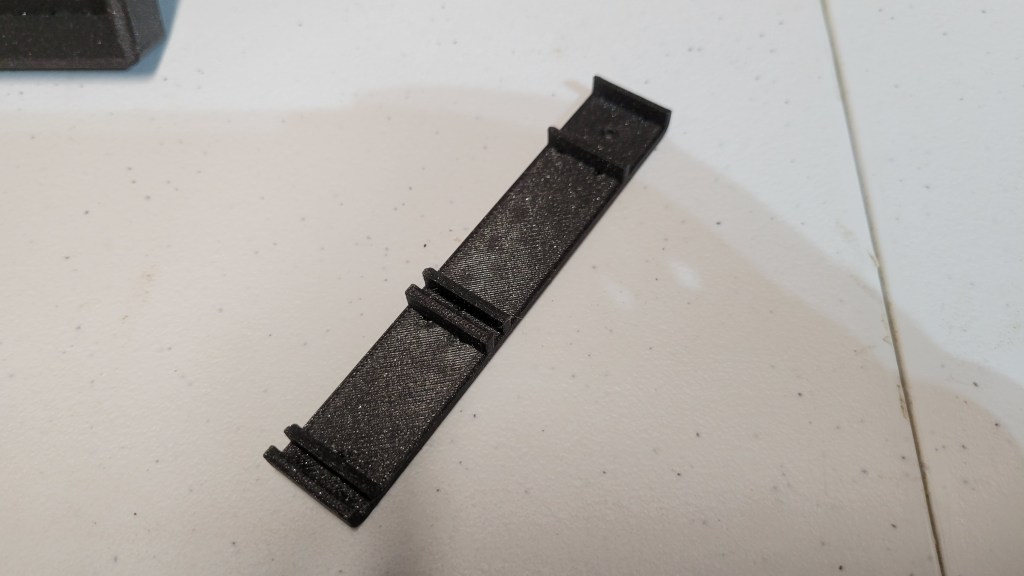

Though you no longer need the bottom brackets that held the tray over the station itself, you will need 8 #2 x 3/16″ flat head sheet metal screws for mounting the 4 round legs to the solder holder base and top, as well as 4 #2-56 square nuts and #2-56 x 3/16″ Flat Head Machine Screws to connect the brackets to the tip cleaning tray.

It is certainly a bit more complex and took a great deal more time to make than V1, but when space is a factor, you do what you need too. Hope you find it useful!
