The SG-N64 Is Here!

Posted: 01/30/2016 in Uncategorized

So what seems like after months of down time and waiting, the first version of the new SG-N64 is complete! What is a SG-N64 you may ask? Well, it’s pretty simple actually. The SG-N64 is a Single Game Nintendo 64 Portable Console. Created by the desire to “Immortalize” some of the greatest games of all time, the SG-N64 takes the greatness of a timeless classic and preserves it in a body designed solely for the purpose of playing it.

Alright, that was the dramatic version, but basically, I love Legend of Zelda as a series but Ocarina of Time has always held a certain claim to my devotion to Nintendo and now retro gaming. I dare say that this game may even compete with my all time favorite game “Final Fantasy VII” but in the interest of comparing apples to apples, for Nintendo, this game is it.

So I decided I wanted to try something that could preserve the legacy in a way that I haven’t seen before. Yes, there have been single game N64’s made in the past for TV, but to my knowledge, this may be the first fully portable system dedicated to a single game, but it won’t be the last. I’ve got plans for two more that will take my top 3 favorite N64 games and turn them into their own portable shrines!

That being said, though I  love this system, I built it so I could…well…sell it. My CNC machines are still down and to make sure my now $2k investments don’t turn into a massive paperweight, I need to get them running again an this is the best way to do it! Check out the video below for more info!

20160130_172518

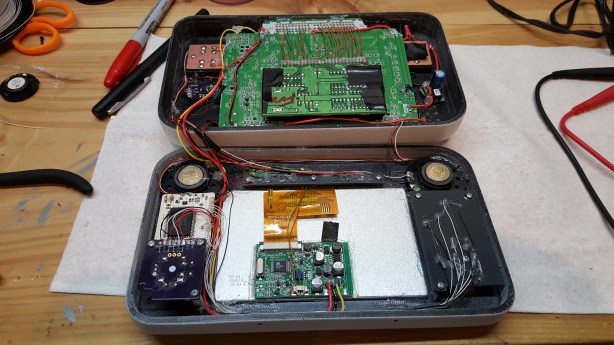

20160128_192032

20160130_172549

20160130_172555

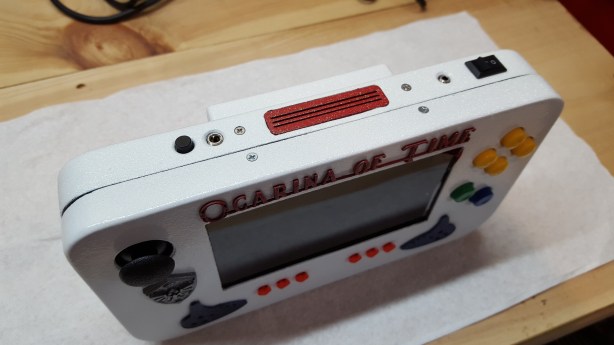

20160130_172531

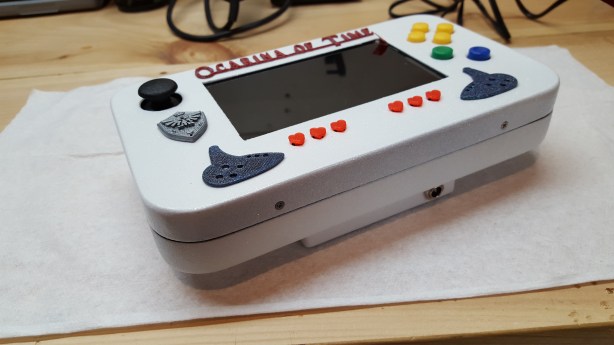

20160130_172612

System Specs:

1 – Original N64 Motherboard, Trimmed with trimmed jumper pak.
1 – Original copy of The Legend of Zelda Ocarina of Time Hardwired
2 – 3.7v Lithium/Polymer batteries w/protection circuit and 8.4V Smart Charger
1 – PTH08080WAZ 3.3v Step Down Regulator
1 – Custom Audio Amp by RDC
1 – Custom N64 Controller by RDC
1 – 5″ 16:9 or 3:4 Ratio Display
2 – 40mm Mylar Speakers
Custom Printed Casing, Buttons (exception C, B&A from a Super Pad)
1 – PS3 Joystick on Custom Breakout Board
1 – Charging Jack
1 – Head Phone Jack w/on-off kill switch
1 – Video output jack & Cable to TV.
Back-lit Tri Force Logo
