Latest Portable Commission Complete

Posted: 05/25/2015 in Current Project, General News
Tags: , , ,

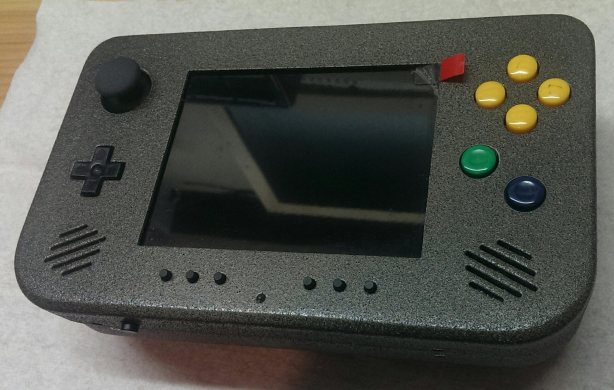

IMAG1614_1

Alright after about 5 months of working off an on  with this project as time allowed, my first portable in a year is complete.

A commission I took at the end of last year, I was finally able to get this guy done and will be shipping out the buyer next week. This is a very basic N64 as far as portables go, but it still did have it’s issues and took a bit longer to fix than anticipated.

System Specs.

5″ TFT LCD Display
2 – 2mm Mylar Speakers
Custom Audio Amp by RDC
2 – 3.7v 5000mAh Li-Po Batteries in Series for 7.4v Output
Standard N64 Motherboard with heavy trim
Expansion Pak
Hardwired Memory Pak
Custom 3D Printed and CNC Machined Enclosure
3.5mm Headphone Jack with Manual On/Off
Dual Power Circuit for Wall and Battery Power

All in all I’m happy with this though the casing issues did irritate me to no end. But the custom audio amp (by RDC), the two seperate power circuits for wall power and battery power and the modular case style were all new techniques/items that I’ve never done before and with the next project I’ll be able to improve on the ideas and their usages.

I didn’t do up a build log for this one but I might do up a couple of posts on the modular case building technique I used as I think that could be pretty helpful for other case makers and portablizers.

So the next project is to finish off my OUYA portable that I’m about 3/4 of the way complete. That one should be fun once it’s complete. So until we meet again, enjoy the video!
